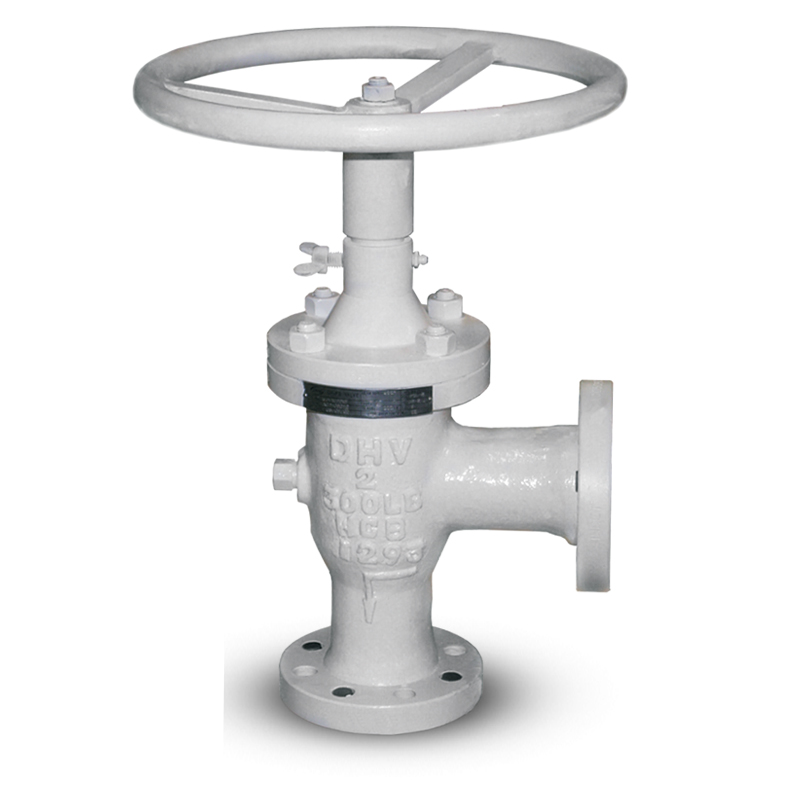

Plug and Cage Choke Valve

2″-12″, 150-2500lb
2 1/16″-5 1/16″ 2000-15000psi
Basic Design: API 6A
Test & Inspection: API 6A

Design Features

• Designed for maximum flow capacity and moderate erosive service


• Application: Wellhead, manifold, gas lift, subsea, injection

• Designed and Tested: API 6A


• End Connection: API 6A or ANSI B16.5 flanged, threaded, butt weld


• Working Pressure: API 6A: 2000psi through 15000si. ANSI B16.5: 300lb through 2500lb


• Performance Requirement Level: API 6A PR1, PR2


• Production Specification Level: API 6A PSL1, PSL2, PSL3


• Temperature Range: API rating K, L, P, R, S, T, U, X

• Nominal Sizes: 2″, 3″, 4″, 6″ with Orifice 1″ through”


• Material: API Rating AA, BB, CC, DD, EE, FF, HH


• Body: Carbon Steel, Alloy Steel, Stainless Steel, Duplex S.S.


• Trim: Alloy Steel, Stainless Steel, 17-4PH, Inconel 625


• Plug and Cage: Tungsten Carbide


• Various Orifice and EP available


• Actuation is available
