Metal Seat Ball Valve

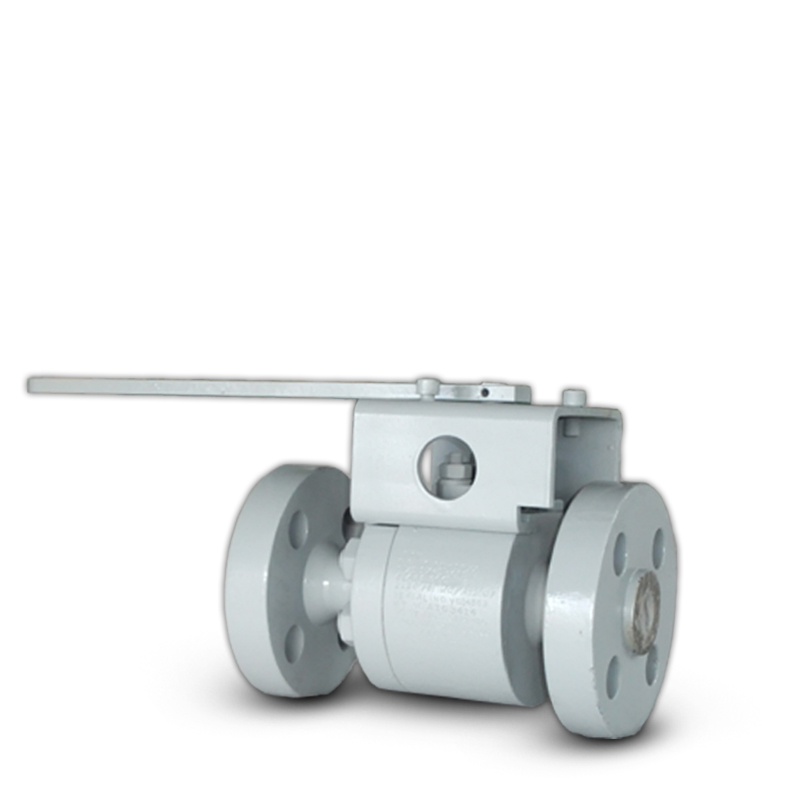

Metal Seat Ball Valve - Image 2

Metal Seat Ball Valve

Catalog

Download PDF

Installation Manual

Download PDF
Category:

Description

Features

  • Forged Steel Body
  • Steam Service
  • Live Loaded Stem Packing
  • HVOF Chrome Carbide Coated Ball
  • Spring Loaded Upstream Seat for Low Pressure Seal
  • Reduced Bore Available
  • ISO Mounting Pad upon Request

Additional information

Additional Information

Basic Design: ASME B16.34
Sizes: 1/2″-24″
Pressures: ANSI 150lb-2500lb
Materials: Forged / Cast Carbon / Stainless Steel
Ends: RF, RTJ, BW
Catalog PDF

https://www.protoolsusa.com/wp-content/uploads/2025/02/DHV-Metal-Seated-Ball-Valve-Catalog.pdf
Installation Manual PDF

https://www.protoolsusa.com/wp-content/uploads/2025/02/IOM-DHV-Metal-Seated-Floating-Ball-Valve.pdf

Related products

Top Entry Ball Valve

Details

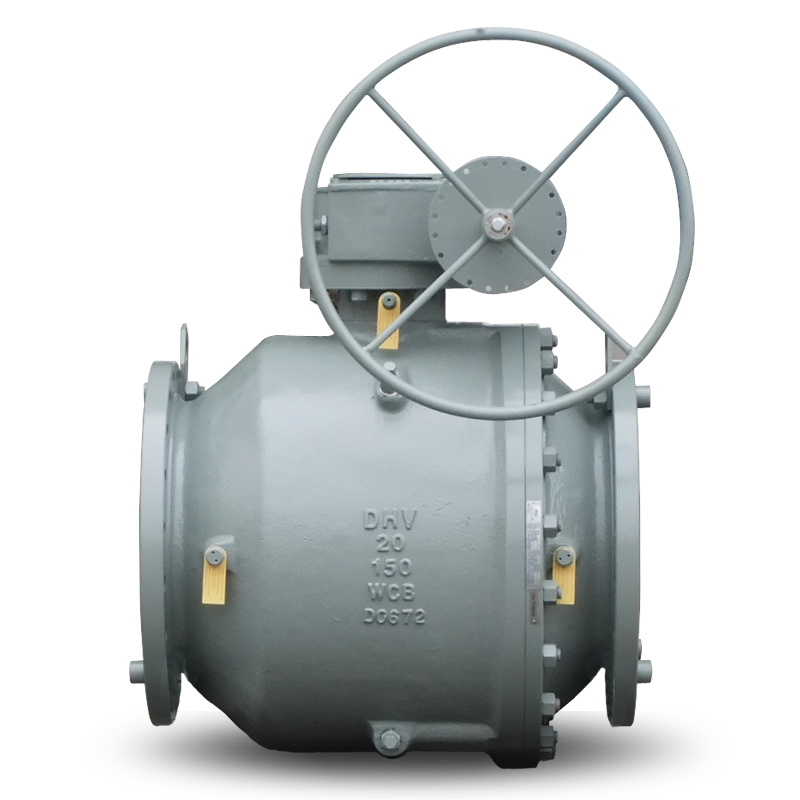

2-Piece Trunnion Mounted Ball Valve
